SKU: OPTEX AX-200TN

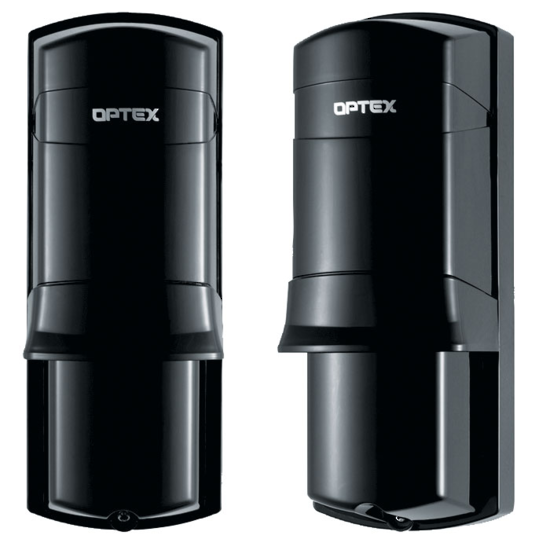

The AX-200TN is a compact, weatherproof short range photoelectric beam detector with 60 m detection. Its IP65 housing uses rubber packing at the wiring holes, wire ports and outer chassis to keep out water, dust and insects, so it stays reliable in harsh outdoor conditions. With 99% beam blocking stability, lightning and surge protection and an anti-frost hood cover, it detects human intruders only, which reduces false alarms.
AX-13TN Weatherproof Photoelectric Beam Detector, 40 m Short Range
| Model | AX-200TN |
|---|---|
| Specification | Detail |
| Maximum detection range | 60 m (70 ft) |
| Maximum arrival range | 600 m (700 ft) |
| Detection method | Infrared beam interruption detection |
| Interruption period | Selectable: 50, 100, 250 or 500 ms |
| Power supply | 10.5 to 28 VDC |
| Current consumption (transmitter + receiver) | 45 mA max |
| Alarm period | 2 s (±1) nominal |
| Alarm output | N.C., 28 VDC 0.2 A max |
| Tamper switch | Opens when cover is removed, 28 VDC 0.2 A max |
| Operating temperature | -35°C to +60°C (-31°F to +140°F). Use the optional HU-3 heating unit at -25°C (-13°F) or below |
| Operating humidity | 95% max |
| Alignment angle | ±90° horizontal, ±5° vertical |
| Mounting | Wall and pole mounting |
| Product dimensions | 170 mm (H) × 65 mm (W) × 69.5 mm (D) |
| Weight (transmitter + receiver) | 650g |
| Housing protection | IP65 (EN 60529) |
