Name: Ruijie Reyee 16 Port PoE 2 Uplink 100 Mbps Unmanaged PoE Switch – RG-ES118FGS-LP
Brand: Ruijie Reyee
SKU: RG-ES118FGS-LP

SKU: RG-ES118FGS-LP

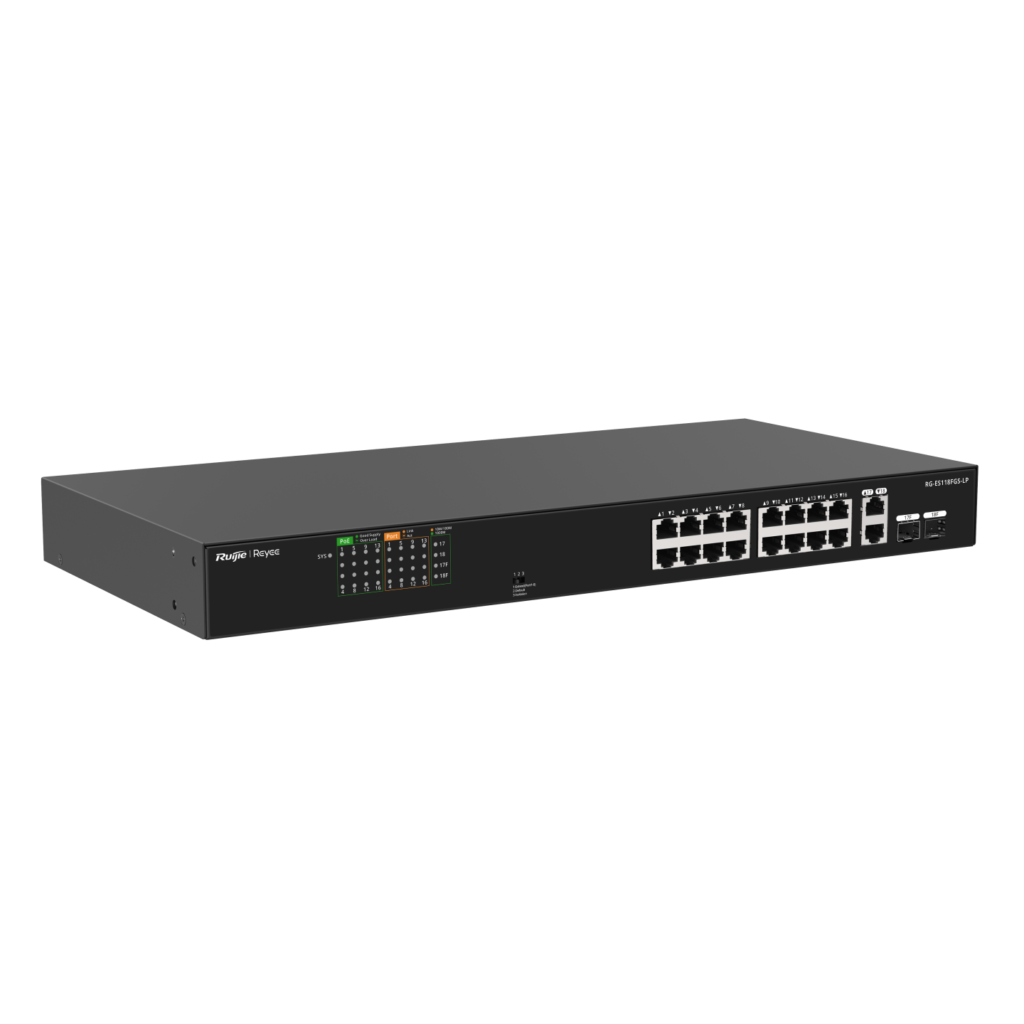

Ruijie Reyee RG-ES118FGS-LP is an 18-port unmanaged PoE switch featuring 16 × 10/100 Mbps PoE+ ports, 2 × Gigabit uplink ports and a 120 W PoE budget. Ideal for CCTV, IP cameras, access control and security networking applications.

🔒

Trade Account Required
Log in to see trade pricing and add to cart — or request a quote, no account needed.

16 Port PoE+

2 Port Uplink

120W Power budget

802.3af/at Standard

16 x 10/100 Mbps PoE/PoE+ ports for IP cameras, access points and other PoE devices
2 x gigabit RJ45 uplinks plus 2 x SFP combo ports for flexible connection to an NVR, router or core switch
120 W total PoE budget
Unmanaged and plug-and-play, with no setup required
PoE watchdog automatically restarts hung PoE devices
Port isolation and flow control for a more reliable, secure CCTV network
16-port 10/100 Mbps PoE+ switch with 2 gigabit uplinks (plus 2 SFP combo ports on this model)
Unmanaged and plug-and-play: no configuration needed
Visible on Ruijie Cloud: monitor it remotely when at least one managed Reyee switch is on the same network
Intelligent, secure CCTV network: port isolation and flow control keep camera traffic reliable, and 4 kV surge protection guards against power surges
Intelligent PoE management: 120 W total budget, and the PoE watchdog automatically restarts hung PoE devices
High-quality design: fanless for silent operation, in a 1U rack-width metal chassis
Suited to many scenarios: CCTV and surveillance, home office, retail and small business networks

Ruijie Reyee RG-ES118FGS-LP 16 Port PoE 2 Uplink 100 Mbps Unmanaged PoE Switch

Specification	Details
Model	RG-ES118FGS-LP
Switch Type	Unmanaged PoE Switch
Ports	16 x 10/100BASE-T PoE/PoE+, 2 x 10/100/1000BASE-T, 2 x SFP combo
PoE Ports	8 × PoE+
PoE Standard	IEEE 802.3af/at
PoE Budget	120 W
Max. PoE/Port	30 W
Switching Capacity	7.2 Gbps
Forwarding Rate	5.35 Mpps
PoE Watchdog	Yes
Port Isolation	Yes
Extended Distance	Up to 250 m*

1x Switch
1x Power cord

Download Datasheet (PDF)
