SKU: CX-1C-KP

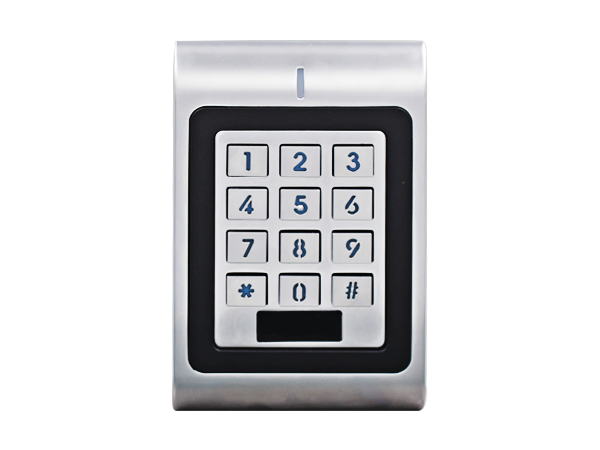

The CX-1C-KP is a single-channel access-control keypad and 125kHz proximity reader for indoor or outdoor use, rated IP66 and rated to operate from −40°C to 60°C. It supports access by card, PIN (4–6 digits) or card+PIN for up to 1,100 users, with a single relay to drive a lock, strike or gate and a latch mode to hold it open. Wiegand 26-bit in/out lets it also act as a reader for a separate controller. Powered by 12–28V AC/DC.
| Model | CX-1C-KP |
|---|---|
| User Capacity | 1100 Card/PIN |
| LED | Red & Blue |
| Operating Voltage | 12~28V AC/DC |
| Current | 55mA(Idle), 80mA(Active) |
| Keypad | 12 Key (2*6) |
| Proximity Card Reader | EM, 125KHz Standard Proximity Card |
| Reader Interface | Wiegand 26bit In/Out |
| Interface | Electric lock, exit button |
| Functions | DOTL, external alarm, door bell |
| Relay | 1 channel NO, NC, COM |
| Relay Output Time | 0 ~ 99 Seconds (5 seconds default) |
| Alarm Output Time | 1 ~ 3 minutes (1 minute default) |
| Lock Output | 3 Amp Maximum |
| Alarm Output | 3 Amp Maximum |
| Enclosure ratings | IP66 |
| Physical | Zinc-Alloy Enclosure, Powder Coated |
| Dimensions | 11.7L x 7.6W x 2.5H (cm) |
| Weight | 600g |
