SKU: CX-SGHKIT1

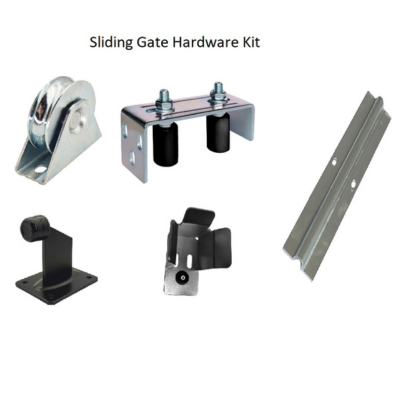

Complete Sliding Gate Hardware Kit
This sliding gate hardware kit is suitable for most sliding gates installed on flat ground and is designed for gates weighing up to 500kg.
Important Installation Note
If your gate is installed on a slope with a height difference of more than 30mm, a larger guide roller bracket is recommended to ensure smooth and reliable gate operation.
Customisation
If you would like to swap or substitute any of the items included in the kit, please let us know before placing your order. We are happy to customise the kit to suit your project requirements.
| Model | CX-SGH-KIT1 |
|---|---|
| KIT | Includes |
| 2 | Gate Wheels with External Mounting Brackets |
| Wheel Diameter (D) | 78mm |
| Wheel Width (A) | 20mm |
| Bracket Width (C) | 35mm |
| Overall Height (H) | 85mm |
| Mounting Hole Diameter (d) | 16.5mm |
| 2 | Gate Tracks (3 Metres Each) |
| Track Radius (R) | 8mm |
| Track Profile (A × B) | 11 × 6mm |
| Thickness (S) | 3.5mm |
| Height (H) | 15mm |
| Base Width (L) | 55mm |
| 1 | Powder-Coated Black Gate Catcher |
| Height (A) | 130mm |
| Mounting Height (A1) | 80mm |
| Width (B) | 65mm |
| Opening (C) | 74mm |
| Material Thickness (S) | 4mm |
| 1 | Adjustable Guide Roller & Bracket Set |
| Roller Diameter (D) | 30mm |
| Roller Height (H) | 40mm |
| Bracket Height (H1) | 40mm |
| Overall Height (H2) | 60mm |
| Width (A) | 55mm |
| Bracket Length (L) | 165mm |
| Adjustable Mounting Range (L1) | 38–83mm |
| 1 | Small Powder-Coated Black Gate Stopper |
| Height (H) | 95mm |
| Base Plate (A × B) | 100 × 80mm |
| Plate Thickness (S) | 8mm |
