SKU: CX-SWH50

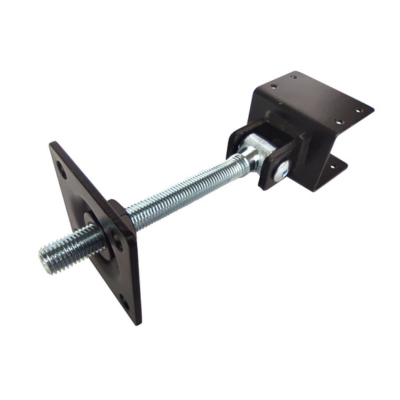

The CX-SWH50 is an adjustable swing-gate hinge designed for 50 × 50mm aluminium box-section gates. Made from heavy-duty steel with a black powder-coated finish for corrosion resistance, its fully adjustable design allows precise alignment during install. The M16 thread with weld-on or bolt-on mounting suits both manual and automatic aluminium swing gates, delivering smooth, quiet and reliable operation with reduced frame wear.
| Gate Frame Size | 50 × 50 mm Aluminium Box Section |
|---|---|
| Material | Heavy-Duty Steel |
| Finish | Black Powder Coated |
| Type | Adjustable Swing Gate Hinge |
| Installation | Weld-On(aluminium)/Bolt-on/Adjustable Mounting |
| Suitable Gate Type | Aluminium Swing Gates |
| Thread Size | M16 |
| Dimensions | Spec |
| A | 56MM |
| B | 54MM |
| C | 75MM |
| L | 171MM |
| S | 2.5MM |
