SKU: TD-3104H1-4P-B2-B

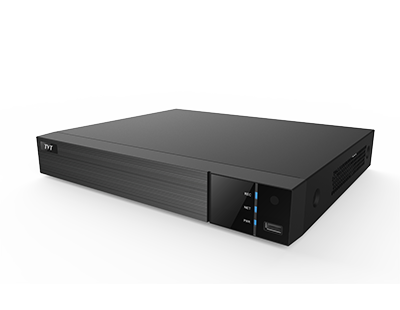

The TVT TD-3104H1-4P-B2-B is a compact 4-channel plug-and-play PoE NVR with a built-in 4-port PoE switch — connect and power four IP cameras (up to 8MP) over a single cable each. H.265+ compression maximises storage on the single-HDD bay, while 4K HDMI output delivers crisp live view and playback. Built-in analytics including face recognition and smart motion detection help surface the events that matter. A neat, cost-effective recorder for small residential and commercial sites.
| Model | TD-3104H1-4P-B2-B |
|---|---|
| Channels | 4Ch IP |
| Max Resolution | 8MP |
| PoE Ports | 4x PoE |
| Compression | H.265+/H.265/H.264+ |
| HDD | 1x SATA up to 10TB |
| Analytics | IVS, FR, Perimeter Protection |
| Third Party Cameras | Onvif |
| Audio | 2-way, 1ch In and Out |
| Output | HDMI + VGA |
| Network | 10/100/1000Mbps |
| PoE | IEEE 802.3af/at, ≤ 48 W |
| Power | 48V DC 1.25A, 10W without HDD and PoE |
| Dimension (W × D × H) | 320 mm × 240 mm × 48 mm |
| Weight | ≤ 1 kg (without HDD) |
| Colour | Black |
