SKU: AMC-30WA

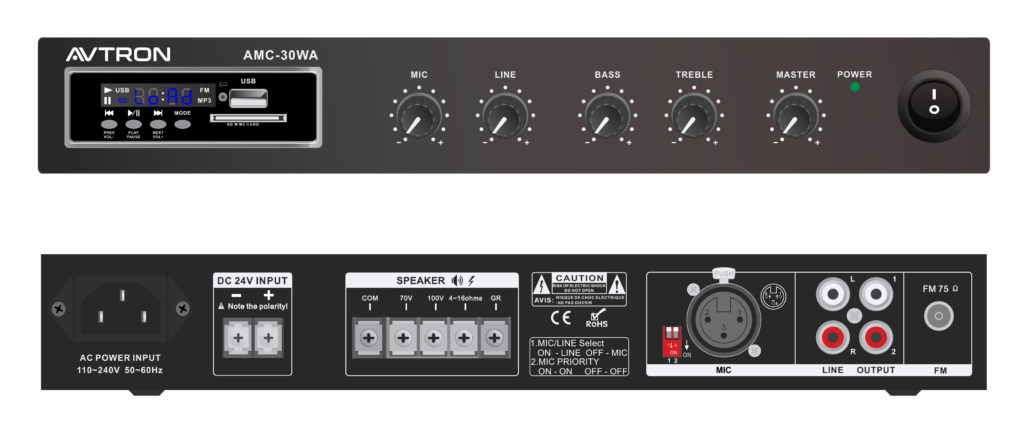

The AVTRON 30W Mini Mixer Amplifier - AMC-30WA is a compact 30W RMS mixer amplifier for single-zone background music and paging — ideal for a retail store, café, waiting room or small office. Three mic/line inputs plus Bluetooth, USB, FM and SD playback drive 100V, 70V or 4Ω speaker lines.
| Model | AMC-30W |
|---|---|
| Output Power | 30W RMS |
| Speaker Out | 100V, 70V, 4 Ohms, 8 Ohms, and 16ohms |
| Input Impendence | Mic: 5-8mV, 600Ω; Line, 150-470mV, 10KΩ, unbalanced RCA |
| Inputs | 1x Mic, 1x Line + Bluetooth, |
| SN Ratio | Line ≥ 85dB, Mic≥ 72dB |
| T.H.D | 1% at rated power, 1 KHz |
| Media | MP3, Bluetooth, USB, FM |
| Tone Control | Bass & Treble |
| Voice Priority | SD card> CH1 Vox> CH1, CH2, CH3, Media player |
| Frequency | 80Hz–16kHz |
| THD | ≤1% @ Rated Power |
| Power | AC 220-240V 50Hz |
| Consumption | <38W |
| Dimensions | 308(W) x 235(D) x 45(H)mm |
