SKU: AV-HD1430ME
Extend HD video signals up to 30 metres using a single Cat6 cable — with no additional power required.

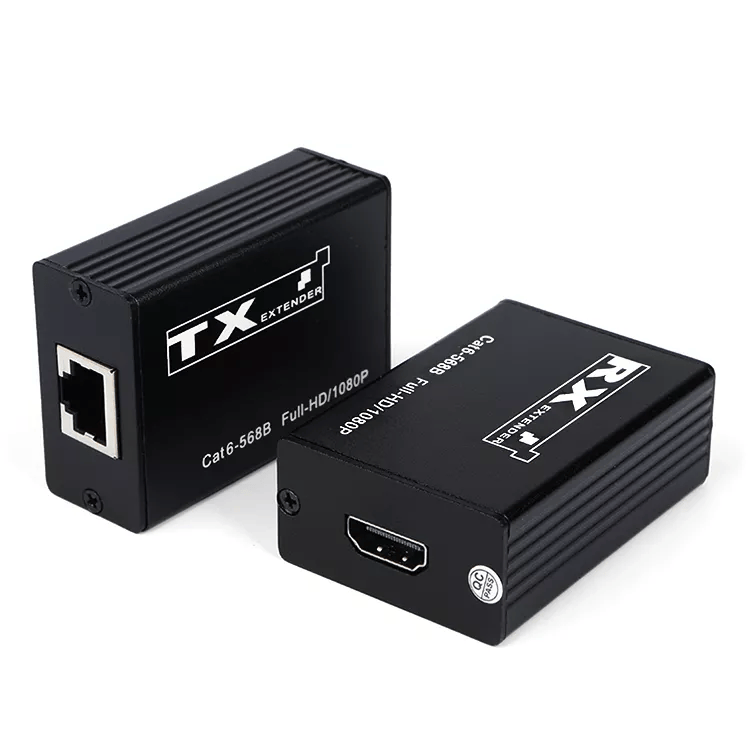

The AV-HD1430ME 1080P Cat6 HD Extender is designed to overcome the distance limitations of standard HDMI/HD cables by transmitting high-definition video over a single Cat6 cable. It supports resolutions up to 1080P over distances of up to 30 metres, making it an ideal solution for CCTV, DVR, NVR and other HD video applications.
| Model | AV-HD1430ME |
|---|---|
| Video Resolution | Up to 1080P |
| Transmission Distance | Up to 30m |
| Transmission Cable | 1 × Cat6 |
| Recommended Cable | Cat6 |
| Maximum Bandwidth | 165MHz |
| Maximum Data Rate | 4.95Gbps |
| Wiring Standard | IEEE-568B |
| Power Requirement | No external power required |
| Installation | Plug & Play |
| Application | CCTV, DVR, NVR and HD video |
| Product Dimension | 62(l) x 42(W) x22(H) mm |
| Weight | <160g TX & RX with box |
